10.4" Fanless Touch Panel PC with Intel® Atom N270 + Intel® 945GSE/ ICH7-M
主要特性
· 10.4" TFT LCD Display
· Intel® Atom™ Processor N270
· Intel® 945GSE / ICH7-M
· IP65 approved front bezel
· Resistive 5-wire TouchScreen
· 1x 2.5” SATA HDD or 1x SSD, and 1x CompactFlash

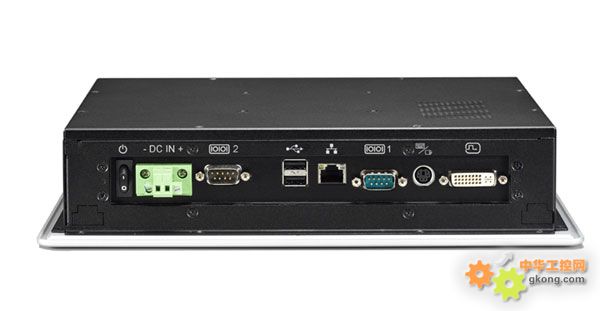

· 1x GbE, 2x COMs, 2x USB ports, DVI-I
產品介紹

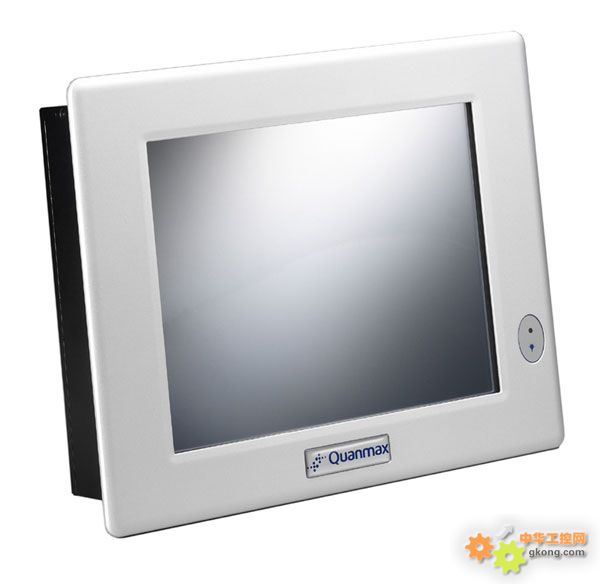

The KPC-1020 10.4” Panel PCs is combining the latest Intel 45nm Intel® Atom™ processor with the high integration
of the Intel® 945GSE/ ICH7-M chipset for a wide range of industrial applications. Storage includes a 2.5" SATA hard drive or a solid-state drive (SSD), and CompactFlash. Supported interfaces include a GbE LAN, 2x serial ports, USB 2.0 ports, DVI-I, thus easily meeting a broad range of customer requirements.
The KPC series provide a compact, high performance human-machine interface, with optimal shock, vibration and temperature resistance for tough industrial demands.
