產品名稱：
|

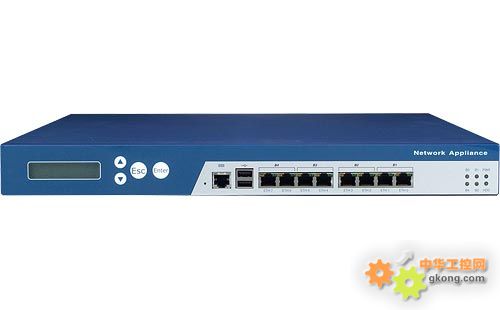

新漢網絡安全——NSA 5110
|
|
型 號：
|
NSA 5110
|
|
價 格：
|
0.00
|
|
品 牌：
|
2562
|
|
|
|
Intel® Xeon™/Core™ 2 Duo 1U上架式機箱，帶8個PCIe千兆網口
產品亮點
整機：NSA5110
機箱：DTX-105D
主板：NSB5110
CPU：INTEL至強3210
內存：8G DDR3
硬盤：500G SATA
電源：300W電源(可選配4個千兆網口)
8個intel 82574L千兆網口（支持BY PASS功能）,1個VGA口，1個CONSOLE口，2個USB口，1個板載CF卡卡槽，1個PCI-E插槽。可擴展網口模塊，具體可擴展規格：2個電口2個光口、4個電口、4個光口、4個電口4個光口、8個電口、8個光口。
特點詳情
1U機架式網絡安全平臺，整機尺寸426mmx 457mm x 44mm，主板采用INTEL 3210芯片組，CPU可采用INTEL至強3210處理器，整機提供1個PCI-E擴展插槽。機器支持BYPASS功能，網絡喚醒功能。機箱支持前端LCD模塊
|
Specifications |
|
主板 |
- NSB5110
- Supports Intel® Xeon™/ Core™ 2 Duo /Pentium®Dual-Core/ Celeron® Processors, LGA775 socket, max 65w
- Support 800/1066/1333 MHz FSB
- Intel® 3210 and ICH9R Chipset
|
|
內存 |
- 4 x 240-pin DDR II 667/800 DIMM Sockets, up to 8GB ECC or Non-ECC DDR II SDRAM
|
|
網絡特點 |
- LAN Chip: Intel® 82574L and 82575EB
- Support 10/100/1000 link speed
- LAN Bypass: 4 pairs
|
|
擴展 |
|
|
I/O接口-前面板 |
- Support 2 x16 Characters LCD module, PIO interface
- Power status / HDD status / LAN status / Bypass status LEDs
- 2 x USB 2.0 ports
- 1 x RJ45 type Console port
- 1 x software button
- 8 x Copper LAN ports
|
|
I/O接口-后面板 |
- 1 x Expansion slot
- 1 x USB 2.0 port
- 1 x VGA port
|
|
設置 |
- 1 x on-board CompactFlash socket
- 1 x Internal 3.5" HDD drive bay
- 1 x SATA-DOM device space
|
|
電源輸入 |
|
|
認證 |
- CE approval
- FCC Class A
- UL
|
|
機箱體積 |
- Chassis Dimension: 426mm x 457mm x 44mm
- Carton Dimension: 560mm x 620mm x 190mm
|
|
重量 |
- Without Packing: 8kg
- With Packing: 12kg
|
訂購信息
- NSA 5110 (P/N: 10S00511000X0)Support Intel® Xeon™/Core™ 2 Duo/Pentium® Dual-Core/Celeron®, 4 DDR2 memory slots, 8 Gigabit LAN ports, CompactFlash Socket, VGA, USB port, One PCIe x8 Expansion Slot
- NSA 5110-C6F2 (P/N: 10S00511002X0)Support Intel® Xeon™/Core™ 2 Duo/Pentium® Dual-Core/Celeron®, 4 DDR2 memory slots, 6 Copper Ports and 2 Fiber Ports, CompactFlash Socket, VGA, USB port, One PCIe x8 Expansion Slot
|
|
|
