桌面式RMI XLS 108/208 CPU，帶WAN x 1, Switch LAN x 5
產品亮點
機箱：BOX-105B
主板：DNB-1500/DNB-1501
CPU： RMI XLS 108 750MHz
內存：1G DDRII
硬盤：320G SATA
電源：200W
6個千兆網口,1個VGA口，1個CONSOLE口，2個USB口，1個板載CF卡卡槽，1個MINI-PCI插槽。
特點詳情

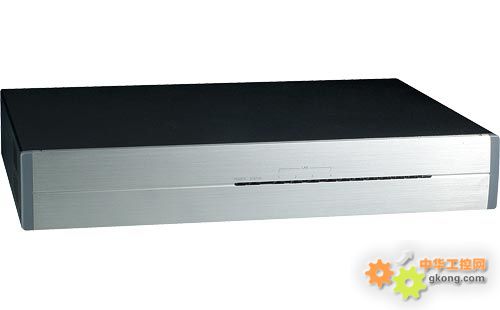

桌面式網絡安全平臺，整機尺寸272mmx 195mm x 44mm，CPU采用RMI XLS 108 750MHz結構，整機提供1個PCI擴展插槽，1個MINPCI槽。機器支持網絡BYPASS功能，網絡喚醒功能。
|
Specifications |
|
主板 |
- DNB 1500/DNB 1501
- On Board RMI XLS 108 750MHz/On Board RMI XLS 208 Dual Core 600 MHz Processors
|
|
內存 |
- 1 x 200-pin DDR2 SO-DIMM Socket, up to 1GB DDR2 SO-DIMM
|
|
網絡特點 |
- LAN Chip: 1 x Marrell 88E11111 x Marrell 7395
- Support 10/100/1000 link speed
- LAN BYPASS: 1 pair
|
|
擴展 |
- Support 2 x Mini-PCIe Slot
|
|
I/O接口-前面板 |
- Power status/HDD status/LAN status LEDs
|
|
I/O接口-后面板 |
- 1 x Power button
- 1 x RJ45 type for Console port
- 2 x USB 2.0 ports
- 6 x Copper LAN ports
|
|
設置 |
- 1 x on-board CompactFlash socket
- 1 x On-board 128MB fl ash memory
|
|
電源輸入 |
- Support 60W ATX Power Supply
|
|
認證 |
- CE approval
- FCC Class B
- UL
|
|
尺寸規格 |
- Chassis Dimension: 330mm x 220mm x 44mm
- Carton Dimension: 430mm x 300mm x 170mm
|
|
重量 |
- Without packing : 2 kg
- With packing : 4 kg
|
訂購信息
· DNA 1500 (P/N: 10L00150000X0)Desktop RMI XLS 108 750MHz, GbE WAN x 1, GbE Switch LANs x 5
· DNA 1501 (P/N: 10L00150100X0)Desktop RMI XLS 208 Dual Core 600 MHz, GbE WAN x 1, GbE Switch LANs x 5
